STATFIELD Powder Coating Gun, Electrostatic Spray Painting Equipment, Powder Coating Equipment MAGNUM, Manufacturer, Supplier, Distributor, Pune, Maharashtra, India

STATFIELD Powder Coating Gun

Leading Manufacturer and Supplier of STATFIELD Powder Coating Gun such as Electrostatic Spray Painting Equipment and Statfield Powder Coating Gun Magnum from Pune.

Electrostatic Spray Painting Equipment

STATFIELD Electrostatic spray painting Equipment is used with Chargeable paints. In this system, paint is negatively charged through electrostatic negative dc charge. Negatively charged air filled carries -ve ions, carries paint particles towards object to be painted.

This equipment provides up to 40% more paint saving against any conventional gun.

MAIN FEATURE : On board self diagnostic of failure for: Incoming mains supply, Mains fuse failure, Control supply, Trigger i/p, Trigger o/p, HV fuse, Oscillator function, Air pressure and a few other failures possibilities

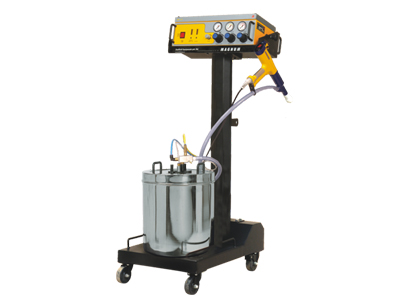

Powder Coating Equipment MAGNUM

STATFIELD make Electrostatic Powder Coating Equipment in MAGNUM Series have UNIQUE features.
The new age powder coating gun is based on concept of low energy generation. A unique device providing safety with enriched powder charging and uniform powder flow. It is lightweight & well balanced due to its molded parts of modern polymer.

• It gives safety with enriched powder charging.
• The unique external path leads to uniform powder flow.
• This gun is lightweight & well balanced due to its moulded parts of modern polymer.
• Now you can spray metallic powder without changing Nozzle.
• Reduced spares consumption.

Powder Spraying Gun	Model Shalaka 17
Input Voltage	35v AC ± 10%
Input Frequency	20 kHz ± 10%
Output Voltage	95 kv DC (Max)
Polarity	Negative (Std)
Output Current	140 µA (Max)
Short Circuit Current	1.0µA (Max)
Powder Delivery Rate	500 Gms/Min (Max)
Deflector	12 mm, 19 mm & 25mm Dia Std.
Weight of Gun	525 gms. (Without Cable & Hose)
Length of Gun	90 mm (Without Nozzle)

STATFIELD POWDER COATING EQUIPMENT	STATFIELD POWDER COATING EQUIPMENT

The new age powder coating gun based on concept of low energy generation. It gives enriched charging while making it safer for use. The unique external path leads to uniform powder flow. All moulded parts of modern polymer makes the gun lightweight, well balanced.

Features :
• Touch Trigger : fatigue free operation and safe as the gun triggers only if operator is earthed.
• Now you can spray metallic powder without changing Nozzle.
• Reduced Sprares consumption

Magnum Accessories

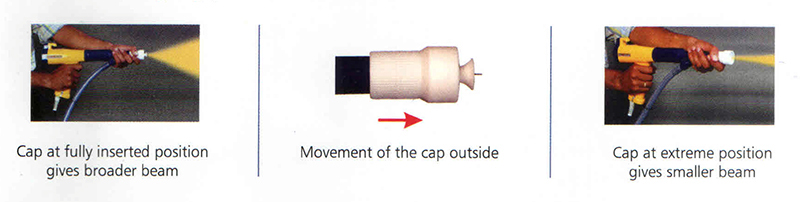

Changing pattern was never So easy... Just move the cap!

Hopper

Hopper
Good quality stainless steel hopper has long life and is easy to clean. On Maxim, additional sieve box is attached to the hopper for built in sieving. Powder level sensor senses minium level of powder.

Direct suction Attachment
Powder can be used directly from the carton. No need of separate container.

Control Block
Powder pump has uniform powder output due to unique design. High volume powder suction with lesser consumption of air, adds to the life of the ventury & reduces the stray bouce back problems.

Optional Accessories

Pluse Spray Head

Star Spray Head

Flat Spray Head

Extension Nozzle

Select Nozzle as per the article geometery.
