Prona Spray Painting Guns

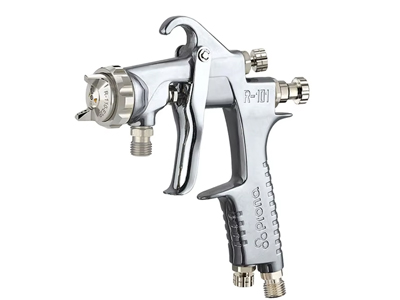

Prona Pressure Feed Spray Gun R 101

High performance Spray gun with high transfer efficiency of Paint. Used in mass production painting work, Convyorised painting line, Continuous spray painting work, Gun can rotate at any direction during painting, This gun is light weight, Fluid path is Stainless Steel, Air adjusting knob is built on gun itself.

Technical Specification
  • Model: PRONA R-101
  • Type: Pressure Feed
  • Fluid Nozzle Orifice: 0.8 / 1.0 / 1.3 / 1.5 / 1.8 mm
  • Air Pressure: 2.5-3.0 bar (0.24-0.29 Mpa)
  • Air Consumption: 75-270 L/min
  • Pattern Width: 120-240 mm
  • Spray Distance: 200 mm
  • Purpose: Light Industry, Automobile, Furniture, Wood Products, Industrial Coating, etc.
  • Weight of Gun: 407 Gms
Prona Spray Painting Guns

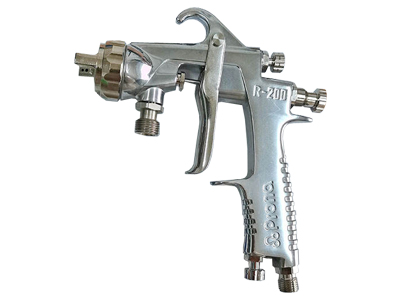

Prona Pressure Feed Spray Gun R 200

Most rigid, versatile model, stainless steel fluid path, can be used with water based materials, maintenance free, compact Auto Spray Gun. Used in mass production spray application in wide range of industries like Painting, Pharmaceutical, dyestuff coating, Oil, Lubricating, Food industry, Rubber solution spray, Textile spray, water based materials/paints. etc.

Technical Specification
  • Model: R-200
  • Type: Pressure Feed
  • Fluid Nozzle Orifice: 0.8 / 1.0 / 1.2 / 1.5 / 1.8 / 2.0 / 2.5 mm
  • Air Pressure: 2.5-3.0 bar (0.24-0.29 Mpa)
  • Air Consumption: 200-560 L/min
  • Pattern Width: 120-400 mm
  • Coating Pressure: 0.8 bar
  • Spray Distance: 250 mm
  • Purpose: Metal Products, Wood Products, Middle and High Viscosity, Large Surface Area Products Coating
  • Weight of Gun: 503 Gms
Prona Spray Painting Guns

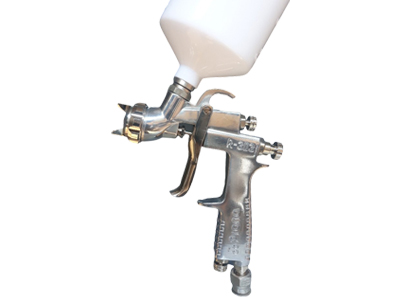

Prona Gravity Spray Gun R 303

High Performance Spray Painting Gun. Light weight. Center Gravity cup ensures operator balance for easy handling of gun during painting process. Most widely used in Painting industries due to Ergonomic balance of gun, Higher transfer efficiency, Stainless Steel fluid path, less operator fatigue, low pressure. Easy maneuverability. Unique Stainless Steel Nozzle & Needle.

Technical Specification
  • Model: PRONA R-403
  • Type: Gravity Feed
  • Nozzle: 1.2 / 1.4 / 1.5 / 1.6 / 1.8 / 2.0 / 2.5 mm
  • Air Pressure: 2.0-3.0 bar (0.2-0.29 Mpa)
  • Air Consumption: 270-380 L/min
  • Pattern Width: 230-340 mm
  • Spray Distance: 250 mm
  • Purpose: Automobile, Base Coat, High Viscosity Coating
  • Weight of Gun: 517 Gms
Prona Spray Painting Guns

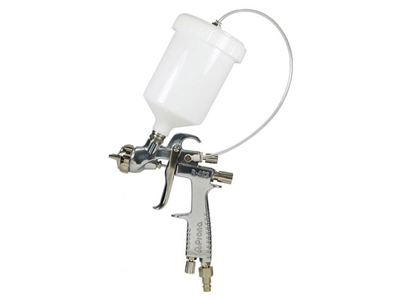

Prona Gravity Spray Gun R 403
Prona Gravity Spray Gun R 403

High Performance Spray Painting Gun. Light weight. Center Gravity cup ensures operator balance for easy handling of gun during painting process. Most widely used in Painting industries due to Ergonomic balance of gun, Higher transfer efficiency, Stainless Steel fluid path, less operator fatigue, low pressure. Easy maneuverability. Unique Stainless Steel Nozzle & Needle.

Technical Specification
  • Model: PRONA R-303
  • Type: Gravity
  • Nozzle: 1.0 / 1.3 / 1.5 / 1.8 mm
  • Air Pressure: 2.0-2.5 bar (0.2-0.24 Mpa)
  • Air Consumption: 75-250 L/min
  • Pattern Width: 130-220 mm
  • Spray Distance: 200 mm
  • Purpose: Metal Products, Wood Products, Automobile, Furniture, Industrial Coating
  • Weight of Gun: 430 Gms
Prona Spray Painting Guns

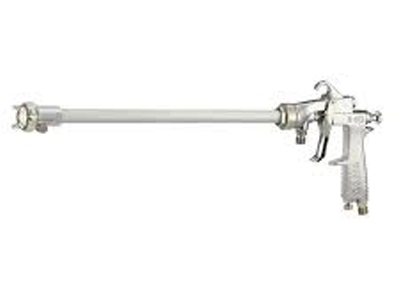

Prona Direct Extension Spray Gun LR 10

Extension Spray Gun is used for painting of internal coating of pipes, difficult to reach areas with normal gun, Painting of fins / internal parts of Radiator, internal areas of Automobile Axle. Spray directs at an angle 45 degree which enables to spray on inner side of pipe easily.

Technical Specification
  • Model: LR-10
  • Type: Extension
  • Fluid Nozzle Orifice: 0.8 / 1.0 / 1.3 / 1.5 mm
  • Air Pressure: 2.5-3.0 (0.24-0.29) Kg/cm² Mpa
  • Air Consumption: 220-270 L/min
  • Length of Tubule: 50-800 mm
  • Pattern Width: 190-240 mm
  • Purpose: Long-Distance Coating
  • Weight of Gun: 540-887 Gms
Prona Spray Painting Guns

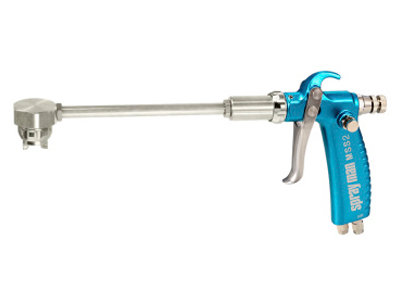

Prona 90° Angle head Fine Tube Spray Gun

The Prona 90° Angle Head Fine Tube Spray Gun is designed for precision spraying in tight or hard-to-reach spaces. Featuring a 0.6 mm fluid nozzle and a 12 mm fluid tube orifice, it ensures accurate application with an adjustable round spray pattern up to 60 mm. Operating at 2.5-3.0 Kg/cm² air pressure, this extension-type spray gun is perfect for detailed and efficient performance.

Technical Specification
  • Model: Mould Release FLAT
  • Type: Pressure
  • Standard Nozzle: 0.5 mm
  • Operating Air Pressure: 1-2 Kgf/cm²
  • Air Consumption: 60 L/Min
  • Fluid Output: 35 Ml/Min
  • Pattern Width: 1-4 inch
  • Air Inlet: 6 mm
  • Paint Inlet: 6 mm
  • Weight of the Gun: 160 gm
Prona Spray Painting Guns

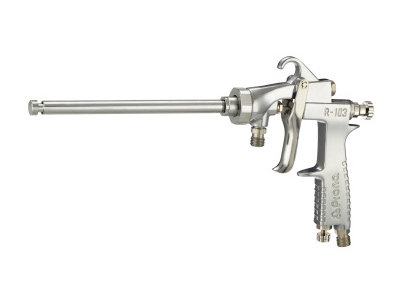

Prona Plane and Inner-wall Extension Spray Gun R103-09PS

Extension Spray Gun is used for painting of internal coating of pipes, difficult to reach areas with normal gun, Painting of fins / internal parts of Radiator, internal areas of Automobile Axle. Spray directs at an angle 45 degree which enables to spray on inner side of pipe easily.

Technical Specification
  • Model: R103-09PS
  • Type: Extension
  • Fluid Nozzle Orifice: 0.7 mm
  • Air Pressure: 2.0-2.5 (0.2-0.24) Kg/cm² Mpa
  • Air Consumption: 150-200 L/min
  • Length of Tubule: 180 / 250 / 300 / 400 / 500 mm
  • Pattern Width: 65-300 mm
  • Purpose: Long-Distance Coating
  • Weight of Gun: 515.850 Gms
Prona Spray Painting Guns
Prona Auto Spray Gun RA 101

High performance Spray gun with high transfer efficiency of Paint. Used in mass production painting work, Convyorised painting line, Continuous spray painting work, Gun can rotate at any direction during painting, This gun is light weight, Fluid path is Stainless Steel, Air adjusting knob is built on gun itself.

Technical Specification
  • Model: RA-101
  • Type: Automatic
  • Fluid Nozzle Orifice: 0.8 / 1.0 / 1.3 / 1.5 / 1.8 mm
  • Air Pressure: 2.5-3.0 bar (0.24-0.29 Mpa)
  • Air Consumption: 90-270 L/min
  • Pattern Width: 140-245 mm
  • Coating Pressure: 0.8 bar
  • Spray Distance: 200 mm
  • Purpose: Metal Powder, Water-Soluble Coating, etc.
  • Weight of Gun: 475 Gms
Prona Spray Painting Guns

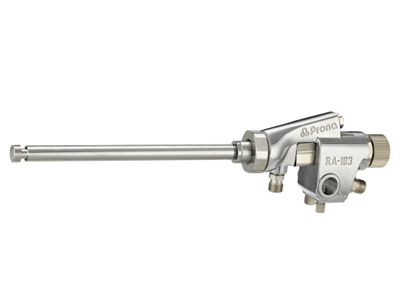

Prona Plane and Inner-wall Extension Spray Gun RA103-PS
Prona Plane and Inner-wall Extension Spray Gun RA103-PS

Extension Spray Gun is used for painting of internal coating of pipes, difficult to reach areas with normal gun, Painting of fins / internal parts of Radiator, internal areas of Automobile Axle. Spray directs at an angle 45 degree which enables to spray on inner side of pipe easily.

Technical Specification
  • Model: RA103-PS
  • Type: Extension
  • Fluid Nozzle Orifice: 0.8 mm
  • Air Pressure: 2.0-2.5 bar (0.2-0.24 Mpa)
  • Air Consumption: 150-200 L/min
  • Length of Tubule: 180 / 250 / 300 / 400 / 500 mm
  • Pattern Width: 65-300 mm
  • Purpose: Long-Distance Coating
  • Weight of Gun: 515.850 Gms
Prona Spray Painting Guns

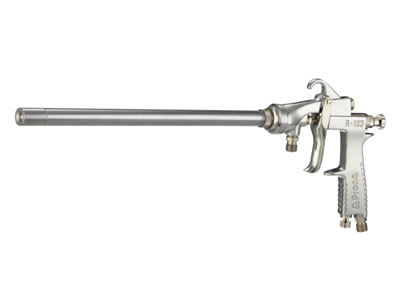

Prona Plane and Inner-wall Extension Spray Gun R103-12PX; RA103-12PX

Extension Spray Gun is used for painting of internal coating of pipes, difficult to reach areas with normal gun, Painting of fins / internal parts of Radiator, internal areas of Automobile Axle. Spray directs at an angle 45 degree which enables to spray on inner side of pipe easily.

Technical Specification
  • Model: R103-12PX / RA103-12PX
  • Type: Extension
  • Fluid Nozzle Orifice: 0.8 / 1.0 mm
  • Air Pressure: 2.5-3.0 bar (0.24-0.29 Mpa)
  • Air Consumption: 140 L/min
  • Length of Tubule: 150 / 300 / 500 / 800 / 1000 / 1500 / 2000 mm
  • Pattern Width: 100-150 mm
  • Purpose: Long-Distance Coating
  • Weight of Gun: 564-2302 Gms
Prona Spray Painting Guns

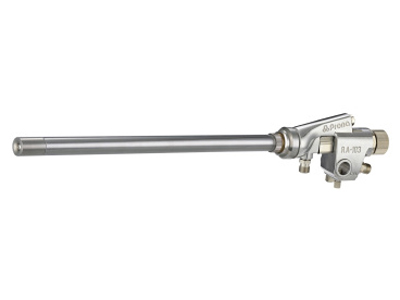

Prona Plane and Inner-wall Extension Spray Gun R103-18PX; RA103-18PX

Extension Spray Gun is used for painting of internal coating of pipes, difficult to reach areas with normal gun, Painting of fins / internal parts of Radiator, internal areas of Automobile Axle. Spray directs at an angle 45 degree which enables to spray on inner side of pipe easily.

Technical Specification
  • Model: R103-18PX / RA103-18PX
  • Type: Extension
  • Fluid Nozzle Orifice: 1.3 mm
  • Air Pressure: 2.5-3.0 bar (0.24-0.29 Mpa)
  • Air Consumption: 180 L/min
  • Pattern Width: 250-300 mm
  • Length of Tubule: 150 / 300 / 500 / 800 / 1000 / 1500 / 2000 mm
  • Purpose: Long-Distance Coating
  • Weight of Gun: 564-2302 Gms
Prona Spray Painting Guns

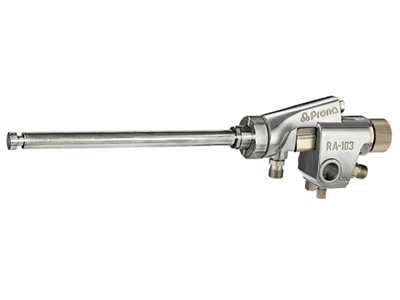

PRONA Plane and Inner-wall Extension Spray Gun R103-12PS; RA103-12PS

Extension Spray Gun is used for painting of internal coating of pipes, difficult to reach areas with normal gun, Painting of fins / internal parts of Radiator, internal areas of Automobile Axle. Spray directs at an angle 45 degree which enables to spray on inner side of pipe easily.

Technical Specification
  • Model: R103-12PS / RA103-12PS
  • Type: Extension
  • Fluid Nozzle Orifice: 1.8 mm
  • Air Pressure: 2.5-3.0 bar (0.24-0.29 Mpa)
  • Air Consumption: 200-230 L/min
  • Length of Tubule: 180 / 250 / 300 / 400 / 500 mm
  • Pattern Width: 100-300 mm
  • Purpose: Long-Distance Coating
  • Weight of Gun: 515-850 Gms
Prona Spray Painting Guns

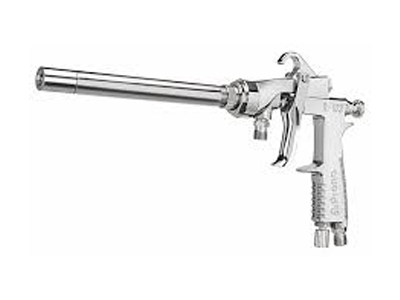

Prona Inner-Wall Extension Spray Gun R-103-L-P12

Extension Spray Gun is used for painting of internal coating of pipes, difficult to reach areas with normal gun, Painting of fins / internal parts of Radiator, internal areas of Automobile Axle. Spray directs at an angle 45 degree which enables to spray on inner side of pipe easily.

Technical Specification
  • Model: R-103-L-P12
  • Type: Extension
  • Fluid Nozzle Orifice: 1.2 mm
  • Air Pressure: 3.0-3.5 bar (0.29-0.34 Mpa)
  • Air Consumption: 230 L/min
  • Length of Tubule: 150-1500 mm
  • Pattern Width: 70 mm (Round)
  • Purpose: Long-Distance Coating
  • Weight of Gun: 540.820 Gms
